Nominal Pumping: 75 Lpm to 2000 Lpm.

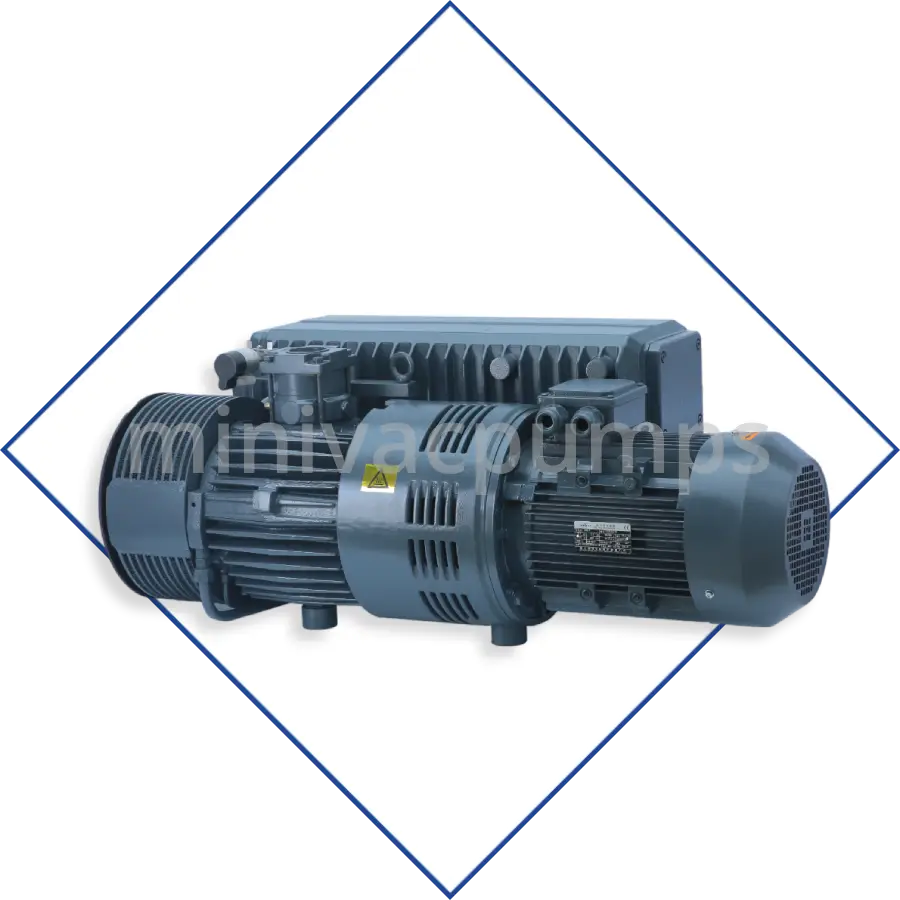

Minivac SVL series vacuum pumps are oil lubricated rotary vane type (Direct/Belt driven) vacuum pumps.
Specially created fiber vanes ensure negligible wear & tear thereby increasing the pump life.
SVL Series is known for its robustness & efficiency in the market whether it is continuous or intermediate operation.
These are useful in many applications like Capsule filling / Capsule printing machines & other pharmaceutical machineries, Packaging / labeling machines, Screen Printing / Plate making, Book binding / folding machines, vacuum chucking etc.
Model | Nominal Pumping Speed | Max.Vacuum (mmHg) |
Operating Vacuum (mmHg) |
Power Required (Hp/Rpm.) |
|
---|---|---|---|---|---|
Litres/min | m3/hr | ||||
SVL-75 | 75 | 4.5 | 710 | 710 | 0.25/1440 |
SVL-150 | 150 | 9 | 710 | 710 | 0.50/1440 |
SVL-300 | 300 | 18 | 700 | 550 | 1.00/1440 |
SVL-500 | 500 | 30 | 635 | 550 | 2.00/1440 |
SVL-1000 | 1000 | 60 | 635 | 550 | 3.00/1100 |
SVL-1500 | 1500 | 90 | 635 | 550 | 5.00/1100 |
